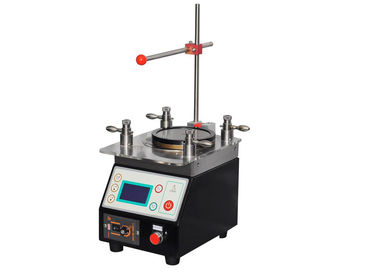

Square Pressurized Fiber Optic Polishing Machine for Manufacture of Patch Cord

Square Pressurized Fiber Optic Polishing Machine for Manufacture of Patch Cord

  • Square Pressurized Fiber Optic Polishing Machine for Manufacture of Patch Cord
Square Pressurized Fiber Optic Polishing Machine for Manufacture of Patch Cord
Product Details:
Place of Origin: China
Brand Name: OEM & SINDA ODM
Certification: ISO, ROHS
Model Number: Fiber polishing machine
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Plastic box
Delivery Time: 3 days
Payment Terms: T/T ,L/C
Supply Ability: 9000pcs/day
Contact Now
Detailed Product Description
High Light:

fiber polishing machine

,

fiber optic curing oven





Square Pressurized Fiber Polishing Machine for Manufacture of Patch Cord





Quick Detail:





Type:  4 coil spring

polishing capacity(max) :SC, FC, ST: 20, 48 units LC: 24, 48units

polishing connector type : FC, SC, ST, LC, MU, MTP, MPO, MTRJ and so on

motor speeed : 90rpm rotation, 2rpm revolution

dimension : 230*230*255mm

weight : 24KG





Description:





1. Overview
Automatic central pressurized fiber polishing machine developed with the use of industrial grade industry-specific microcomputer, development and into Set motor speed, time and count in an organic whole, improve the stability of the machine. Adopting advanced technology.

2. Product introduction:
The fiber polishing machine designed for Polish ceramic, quartz, glass, metal and plastic etc. And this fiber polishing machine can manufacture various standard optical fiber connectors: FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC, FC/APC, SC/APC, MT - RJ, E2000 etc various types of optical fiber connectors should may at any time storage, edit pressure and time parameters.

This fiber polishing machine is easy to change jig and polishing films, Simple to disassemble and increase pressure.

3. Our this automatic central pressurized fiber polishing machine stored edit pressure and time parameters at any time, unloading and very expediency to load, unload and exchange Polish fixtures and films on the fiber polishing machine.

4. This fiber polishing machine's quality is stable and high quality, low repair rate and defect. And the fiber polishing machine designed to adjust velocity, to insure polishing quality. And it's speed can be adjusted at any time (0 ~ 170rpm).

5. The fiber poslihing machine's production high efficiency (number of units can be composed of parallel lines) and (countable sets of production line)and compact to establish production line.

6. This fiber polishing machine is Consumables save, grinding cost is low. Save polishing films and reduce polishing cost. And water can be used as polishing liquid, saving product cost.

7. Atmosphere/water and power supply are designed in respectively, To insure operation is safety. The fiber polishing machine junction with respectively and module control to make repair easy.

8. Our fiber polishing machine is prositive and negative rotation, easy to handle and adjust, in addition, machine Logo and plant color can be assigned.
Stepless speed regulating
Buttons speed adjustment, speed range: 0n/m~170rpm, Each time you press the speed control key speed.
Automatic fixed time
Timing function with the countdown display. Timer time to the machine, time up automatic stop working.
Automatic count
Each time you press the button, the counter automatically increase 1 times, used to grind paper used times of memory.
Grinding speed can be adjustedfrom0 to 170rpm

Can grind to other similar products





Applications:





Patch cord production line.





Specifications :





Pressure way 4 coil spring Insert Loss  0.3 dB (SM)
0.2 dB (MM)
polishing capacity(max) SC, FC, ST: 20, 48 units LC: 24, 48units Return Loss 50 dB (PC)
60 dB (APC)
polishing connector type FC, SC, ST, LC, MU, MTP, MPO, MTRJ and so on Radius 10~25mm
motor speeed 90rpm rotation, 2rpm revolution Offset 50 μ M
dimension 230*230*255mm Under cut 50nm
film size 5' ' Repeatability   0.1dB
weight 24KG Interchangeability 0.2 dB
Input voltage 100-120VAC, 50/60Hz or 220-240VAC, 50/60Hz Working Situation Temperature   -10— +40º C
polishing cycle 2.83mins Heavy punch 500g or 250g
Polishing chassis diameter 130mm
Polishing time setting 0-3min
Counterweight pressure   2.1~3.6kgf/cm
Time Range 0-300S
Polishing Time  2 min. (quick assembly type)
  3-4 min. (standard connectors)
Pressure Range 0~5kg
Precession Speed 1.5rpm





Competitive advantages:





         Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

  All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

  We wish to create better future of optical communication industry jointly with both new and existing customers.
