| Place of Origin: | CHINA |
| Brand Name: | HENGXING |
| Certification: | CE ISO |
| Model Number: | HX120 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Export standard wooden box |
| Delivery Time: | 15 days after receicved deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 sets per month |
| Product Name: | Vibratory Polishing Machine | Application: | POLISHING |
|---|---|---|---|
| Dimensions:: | 980X980X900mm | Rated Voltage: | 380V 50HZ |
| Rated Input Power: | 1.5kw | Weight: | 400 Kgs |
| High Light: | vibration polishing machine,vibro polishing machine |
||

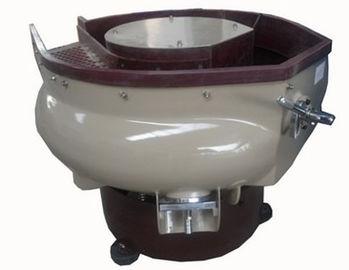

Vibratory Polishing Machine is mainly used for processing parts made of metals, non-ferrous metals and
nonmetals, including removing burrs and rust, rounding and polish-processing, especially suitable for polish processing of parts with complicated and
irregular cavities.
After processing, not only there is no damage to the original shape or precision of dimensions
of the processed parts, but also the precision of the roughness of the processed parts can be
raised 1 to 2 grades. This type of polisher is suitable for the surface polishing of large quantity
and batch of medium and large-sized parts.
Technical Specifications
| Model | HX120 | HX200 | HX300 | HX450 | HX600 | HX900 | HX1200 | |
| Capacity (L) | 120 | 200 | 300 | 450 | 600 | 900 | 1200 | |
| Size (mm) | A | 920 | 860 | 940 | 1180 | 1260 | 1300 | 1500 |
| B | 980 | 1130 | 1280 | 1440 | 1590 | 1950 | 1980 | |
| C | 350 | 560 | 480 | 560 | 580 | 930 | 950 | |
| D | 290 | 270 | 370 | 420 | 480 | 480 | 480 | |
| Motor Power (kw) | 1.5 / 2.2 | 2.2 | 3.7 / 5'0 | 3.7 /5.0 | 5.5 /7.5 | 7.5 / 11 | 11/15 | |
| Weight (kg) | 400 | 550 | 700 | 1000 | 1200 | 1500 | 2000 | |
1. Structure:
Vibratory finishing machine is composed of inertial vibrator, vessel, electrical cabinet and basement.
Inertial vibrator: This is the vibrating source of the machine, it is composed Of vibratory motor,springs
and eccentric blocks.
Vessel: The vessel is welded of annular steel plate. It is lined with high quality wearable
Polyurethane, to weaken the noise and the bump of work pieces on vessel.
Electrical cabinet: Operate the machine by buttons on the control panel.
Basement: It is weld of steel, and it has springs to hold the vessel.
2. Function:
Vibratory finishing machines are suitable for deburring, descaling, edge radiusing, chamfering,
polishing, surface improvement, pre plating finishing all types of components including fully
machined parts in metals & plastics.
3. Working Principle
Vibratory Finishing Machine for Metal Working has a ring chamber to hold abrasives (stones) and
work pieces. When the machine is working, it makes three- high frequency vibration. The grinding
stones and the work pieces are rolling spirally forward and they are grinding each other during the
rolling. This makes the work pieces deburred, chamfered, polished and clean.
To replace the traditional clothwheel polishing, the Vibratory Finishing Machine for Metal Working can
save a lot of spending on manpower, and lower the cost of production. It can also be matched up
with mass production, improve and stabilize the quality of the products.
