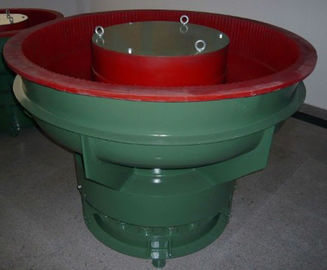

Plastic / stone Vibration Polishing Machine For bearing roller / ferrule / retaining frame

Plastic / stone Vibration Polishing Machine For bearing roller / ferrule / retaining frame

Plastic / stone Vibration Polishing Machine For bearing roller / ferrule / retaining frame

Product Details:

Place of Origin: CHINA
Brand Name: HENGXING
Certification: CE ISO
Model Number: GSJS-150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in Export standard wooden box
Delivery Time: 15 days after receicved deposit
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Product Name: Vibratory Polishing Machine Application: POLISHING
Dimensions:: 1150X1050X900mm Rated Voltage: 380V 50HZ
Rated Input Power: 2,2kw Weight: 400 Kgs


Vibration polishing machine buffing machine is particularly suitable for chamfering, deburring and improving surface roughness of various metal and non-metal parts (such as bearing rollers, ferrules, retaining frames, automobile parts and gears), improves the whole appearance quality of the parts,

and is the preferred and requisite equipment of industries such as aircraft manufacturing, automobile, bearing, textile, and craftwork, etc.

1. Adoption of vibratory motor to produce vibrating force, it makes workparts and medias move in one direction and mass finished

2. Aplicable to process small and medium size workparts in large amount load, with good finish effect and sand working efficiency is improved to 6-10 times compared with tradional finishing methods.

3. No damage to the original shape and size of the workpart.

4. The processing vessel interior surface is lined with PU (polyurethane), avoiding direct damage to the work -parts and machine metal, and the working life for the machine is extended.

5. Random checking the workparts in the finishing process, easy operation. Option to choose the independent electrical box with converter.



Technical Specifications



MODE capacity motor electricity motor speed PU lining thickness size(LXWXH) weight
(L) (KW) (V/HZ) (r/min) (mm) (mm) (kg)
GSJS-30 30 0.37 380/50 1450 6-15 500X500X600 60
GSJS-60 60 0.75 380/50 1450 6-15 600X640X660 80
GSJS-80 80 1.1 380/50 1450 6-15 1100X1040X900 120
GSJS-150 150 2.2 380/50 1450 6-15 1150X1050X900 400
GSJS-200 200 3.0 380/50 1450 6-20 1200X1180X920 440
GSJS-300 300 3.7 380/50 1450 6-20 1330X1330X1000 560
GSJS-400 400 3.7 380/50 1450 6-22 1500X1350X1050 800
GSJS-600 600 5.5 380/50 1450 6-22 1880X1800X1400 1500
GSJS-900 900 11 380/50 1450 6-22 2150X2100X1450 2000

 Plastic / stone Vibration Polishing Machine For bearing roller / ferrule / retaining frame





1. Structure:

Vibratory finishing machine is composed of inertial vibrator, vessel, electrical cabinet and basement.

Inertial vibrator: This is the vibrating source of the machine, it is composed Of vibratory motor,springs

and eccentric blocks.



Vessel: The vessel is welded of annular steel plate. It is lined with high quality wearable



Polyurethane, to weaken the noise and the bump of work pieces on vessel.



Electrical cabinet: Operate the machine by buttons on the control panel.



Basement: It is weld of steel, and it has springs to hold the vessel.



Plastic / stone Vibration Polishing Machine For bearing roller / ferrule / retaining frame
