    Product Details:

    Place of Origin: China
    Brand Name: Jiangyin Hallo
    Certification: CE, ISO
    Model Number: 60B Crushing System

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: export wooden case
    Delivery Time: 20-30 days
    Supply Ability: 1500 sets per year
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Application: Powder, Granules
    Condition: New Warranty: 1 Year
    Type: Automatic Working



    Cyclone separating Pulse Automatic Milling Machine With Dust Collecting System







    Main Application :


    60B Stainless Steel Cyclone-separating Pulse Crushig Machine With Dust Collecting System is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust-collecting and continuous-discharge into a unit.





    Working Principle :

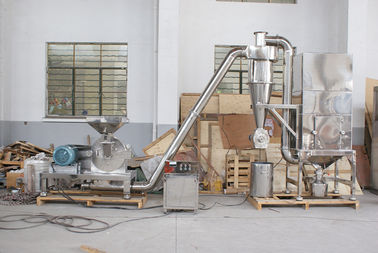

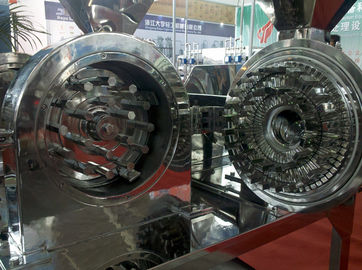

    This machine is made up of crusher, cyclone separator, pulse dust collecting box and blower fan etc.. By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower, dust come into the pulse dust collecting box, filtrated and recycled by the filter cylinder. The crushing size can be adjusted by the screen. Designed by the standard of "GMP" the whole machine is made of stainless steel, and there is no flying dust during the process of production.





    Technical Parameters :



    Model

    Production
    Capacity

    Feeding
    Size

    Crushing
    Fineness

    Spindle
    Speed

    Crushing
    motor

    Dust collecting
    motor

    Discharge
    Motor

    overall
     dimension

    weight

    60BIV,V,VI

    300-1500kg/h

    12mm

    20-120mesh

    2800r/min

    18.5kw

    7.5kw

    1.1kw

    3850*1100*
    2380mm

    2000kg



    (P.S.:IV-mild steel,V-stainless steel,VI-stainles  steel with water cooler)



    Attention: If you are not satisfied, don't be disappointed. The images and parameters are not comprehensive at the webpage. You can tell us your request and we will recommend one to you. And also customizable, our engineer can exclusively design for you.



    Cyclone separating Pulse Automatic Milling Machine With Dust Collecting System

    Cyclone separating Pulse Automatic Milling Machine With Dust Collecting System

    FAQ:

    How to order from us?

    It's simple, when every detailes of the mixer is confirmed between us, we will issue out the PI for deposit



    How to know the machine is quality or not?

    We will send you details and photos when the machines is under production and send you the testing video when finished.



    How to make sure we will ship out the machines when you send rest payment?

    We will send you the Bill of Lading after we ship out the machines.



    How to keep the maintenance?

    The machine is ready to use design and test ok when delivered, only to keep the motors clean and dry, the bearings with enough grease (add grease each year)
