40B Impacting Teeth Plate Food Crushing Machine For Foodstuff

40B Impacting Teeth Plate Food Crushing Machine For Foodstuff

    • 40B Impacting Teeth Plate Food Crushing Machine For Foodstuff
    • 40B Impacting Teeth Plate Food Crushing Machine For Foodstuff
  • 40B Impacting Teeth Plate Food Crushing Machine For Foodstuff

    Product Details:

    Place of Origin: China
    Brand Name: Jiangyin Hallo
    Certification: CE, ISO
    Model Number: 40B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 20 days
    Payment Terms: by T/T (The contract becomes effective after receiving 30% payment, balance against the copy of B/L)
    Supply Ability: 3,500s ets per year
    Contact Now
    Detailed Product Description
    Model: B Series Application: Granules/powder
    Material: Stainless Steel Warranty: 1year
    Condition: New Payment: T/T Or L/C At Sight
    Terms: FOB, CIF, CFR Etc.

    40B Impacting Teeth Plate Food Crushing Machine For Foodstuff



    Working Principle :

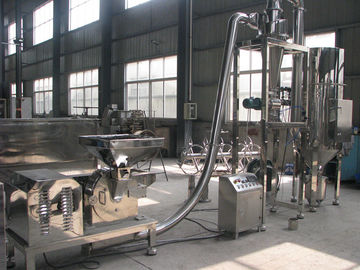

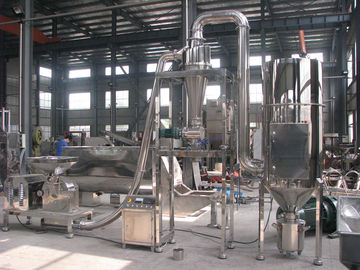

    This machine is made up of crusher, cyclone separator, pulse dust collecting box and blower fan etc.. By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower, dust come into the pulse dust collecting box, filtrated and recycled by the filter cylinder. The crushing size can be adjusted by the screen. Designed by the standard of "GMP" the whole machine is made of stainless steel, and there is no flying dust during the process of production.



    Main Application :
    This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust-collecting and continuous-discharge into a unit.





    Technical Parameters:

    Model

    40B  IV, V, VI

    Capacity

    160-1000 kg/h

    Feeding size

    < 6mm

    Crushing fineness

    20mesh – 120mesh

    Spindle speed

    3400 r/min

    Crushing Motor

    11 KW

    Dust Collecting Motor 3 kw
    Discharging Motor 0.75kw

    dimension

    3500*900*2380mm

    Weight

    1200kg

    (P.S.: IV-mild steel, V-stainless steel, VI-stainless steel with water cooling system)

    Attention: If you are not satisfied, don't be disappointed. The images and parameters are not comprehensive at the webpage. You can tell us your request and we will recommend one to you. And also customizable, our engineer can exclusively design for you.




    B Series Stainless Steel Super Pulverizing Machine With Dust Collecting System
    B Series Stainless Steel Super Pulverizing Machine With Dust Collecting System
    B Series Stainless Steel Super Pulverizing Machine With Dust Collecting System







    FAQ:

    How to order from us?

    It's simple, when every detailes of the mixer is confirmed between us, we will issue out the PI for deposit



    How to know the machine is quality or not?

    We will send you details and photos when the machines is under production and send you the testing video when finished.



    How to make sure we will ship out the machines when you send rest payment?

    We will send you the Bill of Lading after we ship out the machines.



    How to keep the maintenance?

    The machine is ready to use design and test ok when delivered, only to keep the motors clean and dry, the bearings with enough grease (add grease each year)
