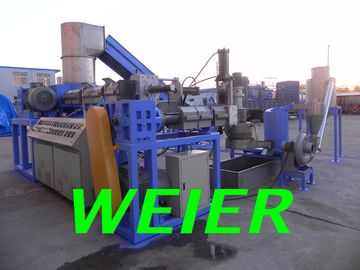

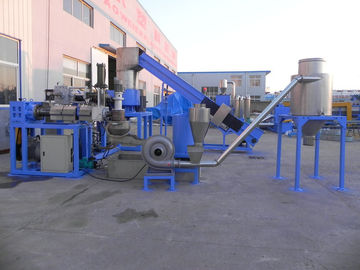

PP / PE Plastic Pelletizer Machine , Double Stage Recycling Machinery

PP / PE Plastic Pelletizer Machine , Double Stage Recycling Machinery


Quick Detail:


• Application:Film
• Plastic Processed:PE
• Screw Design:PE/PP film recycling plant
• Automatic Grade:Fully Automatic
• Place of Origin:Shandong, China (Mainland)
• Brand Name:weier
• Model Number:PE-300
• Voltage:Power supply 380V±10%,50Hz; controling power supply:220V±10%
• Power(W):37kw
• Dimension(L*W*H):32000*3000*2800mm (L*W*H)
• Weight:8T
• Certification:CE/SGS/ISO9001:2008
• After-sales Service Provided:Engineers available to service machinery overseas
• Machine Model:PE-300 PE film recycling plant
• Raw material:Wasted PE/PP film or pp woven bags
• Capacity:100-1000kg/hr
• Final products:clean dry PE/PP flake



Description:

The extruder barrel is double_layer making form wear-proof alloy steel a301, hardness HRC6064.
The extruder screw is made form high-speed tool steel W6Mo5Cr4Vo2, vacuum hardening reach HRC58-62, having strong wearability and long life use.
Extruder temperature adopts digital control system to realize temperature accurate control automatically.
Head of extruder equipped with pressure sensors and melt temperature measurement
thermocouple to inspect and control extrusion conditions, and to meet the technical
requirement for various materials processing.


Specifications:

Raw material —— Conveying feeding —— Degassing single screw extruder ——Hydraulic screen exchanger ——Material outing mould —— Single screw extruder —— Hydraulic screen exchanger —— Rub surface granulating machine ——Slip trough ——Centrifugal dewatering machine ——Vibrating screener —— Blowing system —— Storage hopper —— Finished product packing


Technical parameters:




Competitive Advantage:

High efficiency screws equip;
Global brand of electric parts;
Better after-sale service
