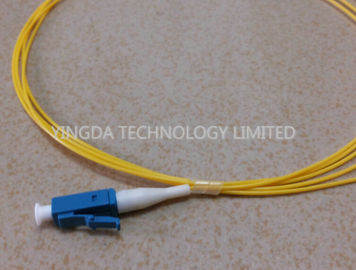

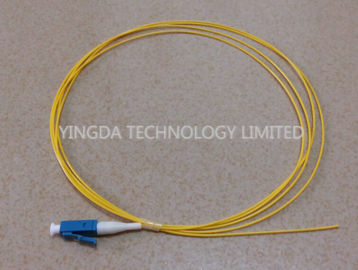

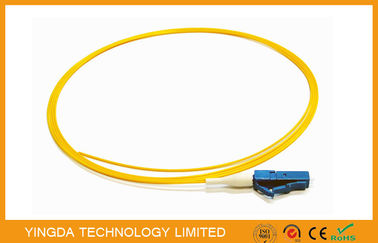

LC SM LSZH Optical Fiber Pigtail 900um White 1.5M UPC Polish , Single Mode Fiber Pigtails

LC SM LSZH Optical Fiber Pigtail 900um White 1.5M UPC Polish , Single Mode Fiber Pigtails

    • LC SM LSZH Optical Fiber Pigtail 900um White 1.5M UPC Polish , Single Mode Fiber Pigtails
    • LC SM LSZH Optical Fiber Pigtail 900um White 1.5M UPC Polish , Single Mode Fiber Pigtails
    • LC SM LSZH Optical Fiber Pigtail 900um White 1.5M UPC Polish , Single Mode Fiber Pigtails
  • LC SM LSZH Optical Fiber Pigtail 900um White 1.5M UPC Polish , Single Mode Fiber Pigtails

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: YINGDA
    Certification: ISO SGS ROHS
    Model Number: FPC-LC-OS1-09-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pcs
    Price: negotiable
    Packaging Details: 1 pc/ bag, 1500pcs / carton box
    Delivery Time: 7days after payment
    Payment Terms: Western Union, T/T
    Supply Ability: 200,000 pcs per month
    Contact Now
    Detailed Product Description
    Connector: LC / UPC Fiber Count: Simplex 1 Core
    Insertion Loss: <0.3dB Fiber Type: G652D Fiber
    Package: Plastic Bag With OEM Label Cable Diameter: 900um
    Jacket: LSZH,PVC Connector Color: Yellow, White
    Temperature: -40~+80°C Customer Logo: Yes
    Wavelength: 1310nm / 1550nm

    Fiber Pigtail LC SM LSZH 900um White 1.5M, LC Pigtail Single Mode UPC Polish





    LC connector: it use to connector SFP transceivers module, it use the easy operation module jack

    (RJ) door bolt plug type, router most use this.



    LC / UPC Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which

    be cut off.Then it connect by splice with other cable core. It is widely used in fiber optic terminal

    box, ODF rack , cabinet to connect with fiber optic media converter/transceivers( also use coupler,

    patch cord too)



    Single mode pigtail color is yellow, wavelength: 310nm and 1550nm, their transmission distance:

    10km and 40km each.



    Features

    1. Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
    2. Fiber transmission active connection
    3. Low insertion loss, high return loss
    4. Good changeability and repeatability
    5. Mostly used inside frame connection, simple, convenient and economical
    6. Easy to install, small size, large capacity.



    1.Technical Data

    NO.

    Item

    Unit

    Single Mode

    Multi-Mode

    1

    Insertion Loss

    dB

    ≤0.2

    ≤0.3

    ≤0.3

    2

    Return Loss

    dB

    ≥50/UPC

    ≥45/PC

    ≥65/APC

    ≥35/PC

    3

    Repeatability

    dB

    0.1

    4

    Working Times

    Times

    ≥1000

    5

    Operating Temperature

    °C

    -40-85

    6

    Optical Cable Diameter

    mm

    Φ0.9

    Φ2.0

    Φ3.0





    Application

    • Medical instruments
    • Industry and Army use
    • Fiber Access network
    • Telecommunications
    • Gigabit Data Network test
    • CATV network
    • LAN network



    Ordering Information:


    LC/ PC sM 9/125 SIMPLEX 0.9mm–1M LSZH

    ①  ②       ③     ④         ⑤    ⑥  ⑦

    ① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
    ② Ferrule End-face: PC, UPC, APC
    ③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
    ④ Cable Quantity: simplex or duplex
    ⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
    ⑥ Cable Length: 1, 2, 3 meter or customized
    ⑦ Cable type: PVC, LSZH





    LC singlemode Pigtail,0.9mm loose tube white color cable:



    LC SM LSZH Optical Fiber Pigtail 900um White 1.5M UPC Polish , Single Mode Fiber Pigtails



    LC pigtail neutral package plastic bag:

    LC SM LSZH Optical Fiber Pigtail 900um White 1.5M UPC Polish , Single Mode Fiber Pigtails

    LC SM LSZH Optical Fiber Pigtail 900um White 1.5M UPC Polish , Single Mode Fiber Pigtails
