Conventional Tank Welding Rotator Turning Rolls Of Automatic Welding Machine

Conventional Tank Welding Rotator Turning Rolls Of Automatic Welding Machine

Conventional Tank Welding Rotator Turning Rolls Of Automatic Welding Machine

Product Details:

Place of Origin: SHANGHAI
Brand Name: Yijie
Certification: CE
Model Number: WR

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: discuss in letter
Packaging Details: With bubble paper
Delivery Time: 15--25days
Payment Terms: TT,L/C
Supply Ability: 80sets/month
Contact Now
Detailed Product Description

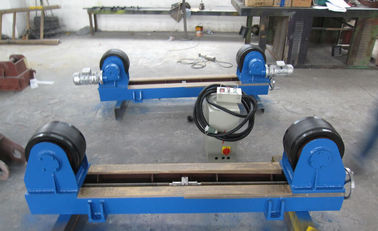

Conventional Tank Welding Rotator Turning Rolls Of Automatic Welding Machine


Wheel frame drive the cylindrical (or conical) welding rotating device by welding and active roller friction. Self alignment turning roller is suitable for welding of circular cylinder, which can adjust themselves according to cylinder size, and a variety of specifications for user choosing, large tonnage may design and manufacture. Adjustable turning rolls have manual lead screw adjusting, manual bolt shifting and electric sliding plate shifting 3 kinds.
By adjusting the center distance of roller, this is applicable different diameter cylinder.

Adjustable turning rolls apply to circular cylinder of welding, trolley spacing can adjust to adapt to the cylinder size. Roller spacing can be divided into lead screw-adjustable turning roller and bolt-adjustable turning roller. Adjustable turning rolls for double motor drive, frequency control method.

Our company in accordance with domestic and foreign similar products manufacturing experience, combined with the reality, for the first time adopted the English logo classification: WR5-1000.


Product Application:

Used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.


Product Advantage:
  1. Adjustable type, convenient
  2. high quality
  3. Reasonable price
  4. good service

Specification:


Type

Max Loading Ton


Vessel Diameter Range  mm


Wheel Size mm

Motor Power KW


Linear Speed M/ h








Diameter

Width





WR5

5

250---2300

250/240

100+20*2

0.37*2

6---60

WR10

10

320---2800

300/290

120+25*2

0.55*2



WR20

20

450---3500

350/340

120+30*2

1.1*2



WR40

40

600---4200

400/390

120+40*2

1.5*2



WR60

60

750---4800

450/440

120+50*2

1.5*2



WR80

80

850---5000

500/490

120+60*2

2.2*2



WR100

100

1000---5500

500/490

120+70*2

2.2*2



WR150

150

1200---6500

600

280

4*2



WR200

200

1500---8000

700

300

5.5*2



WR500

500

1800---8000

800

300

7.5*2



WR1000

1000

2000---10000

1000

350

11*2



Remote control box line length:8m
The speed adjustment way:Electromagnetic speed or frequency conversion
SAR5-100:Roller for rubber wheel add two pieces of metal wheels / SAR150-500:Roller for metal wheels
SAR150-1000:Adopt double motor speed control



Applications:

Welding Rotator major used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.


Competitive Advantage:

1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
2. 20 % overweight design , could making the rotator focus more.
3. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
4. All the parts using well-known brands in China or other countries . Quality is more reliable .
5. Using double row bearings.
6. The base of rotator welded by plates, with high strength, no deformation after long time using.


Why always Sunny?

360°guarantee makes ordering risk free.
20 years welding machine manufacture experiences.
one-stop service of welding.
OEM service.
Quickly feedback for your problems.
