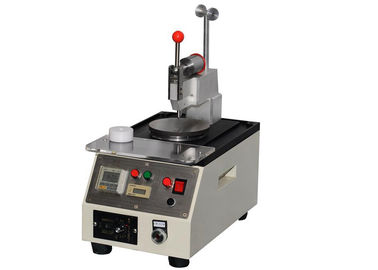

Fiber Optic Polishing Machine for patch cord production facilities

Fiber Optic Polishing Machine for patch cord production facilities

    • Fiber Optic Polishing Machine for patch cord production facilities
  • Fiber Optic Polishing Machine for patch cord production facilities

    Product Details:

    Place of Origin: China
    Brand Name: OEM & SINDA ODM
    Certification: ISO, ROHS
    Model Number: Fiber polishing machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: Plastic box
    Delivery Time: 3 days
    Payment Terms: T/T ,L/C
    Supply Ability: 9000pcs/day
    Contact Now
    Detailed Product Description
    High Light:

    fiber polishing machine

    ,

    fiber optic curing oven





    Fiber Optic Polishing Machine for patch cord production facilities





    Quick Detail:





    Type:  Center Presure

    polishing capacity(max) :SC, FC, ST: 20, 48 units LC: 24, 48units

    polishing connector type : FC, SC, ST, LC, MU, MTP, MPO, MTRJ and so on

    motor speeed : 90rpm rotation, 2rpm revolution

    dimension : 230*230*255mm

    weight : 24KG





    Description:



    1. Overview
    Automatic central pressurized fiber polishing machine developed with the use of industrial grade industry-specific microcomputer, development and into Set motor speed, time and count in an organic whole, improve the stability of the machine. Adopting advanced technology.

    2. Product introduction:
    The fiber polishing machine designed for Polish ceramic, quartz, glass, metal and plastic etc. And this fiber polishing machine can manufacture various standard optical fiber connectors: FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC, FC/APC, SC/APC, MT - RJ, E2000 etc various types of optical fiber connectors should may at any time storage, edit pressure and time parameters.

    This fiber polishing machine is easy to change jig and polishing films, Simple to disassemble and increase pressure.

    3. Our this automatic central pressurized fiber polishing machine stored edit pressure and time parameters at any time, unloading and very expediency to load, unload and exchange Polish fixtures and films on the fiber polishing machine.

    4. This fiber polishing machine's quality is stable and high quality, low repair rate and defect. And the fiber polishing machine designed to adjust velocity, to insure polishing quality. And it's speed can be adjusted at any time (0 ~ 170rpm).

    5. The fiber poslihing machine's production high efficiency (number of units can be composed of parallel lines) and (countable sets of production line)and compact to establish production line.

    6. This fiber polishing machine is Consumables save, grinding cost is low. Save polishing films and reduce polishing cost. And water can be used as polishing liquid, saving product cost.

    7. Atmosphere/water and power supply are designed in respectively, To insure operation is safety. The fiber polishing machine junction with respectively and module control to make repair easy.

    8. Our fiber polishing machine is prositive and negative rotation, easy to handle and adjust, in addition, machine Logo and plant color can be assigned.
    Stepless speed regulating
    Buttons speed adjustment, speed range: 0n/m~170rpm, Each time you press the speed control key speed.
    Automatic fixed time
    Timing function with the countdown display. Timer time to the machine, time up automatic stop working.
    Automatic count
    Each time you press the button, the counter automatically increase 1 times, used to grind paper used times of memory.
    Grinding speed can be adjustedfrom0 to 170rpm

    Can grind to other similar products





    Applications:





    Patch cord production line.





    Specifications :



    Item                                      3CX-12A                                  3CX-12B
    Motor  Normal Motor Panasonic Motor
    Mode of drive Drived by belt Drived by alloyed gears
    Material  Steel: 304 ( Normal) Steel: S136 (Swiss made)
    Polishing Disk (size) 112x8mm 130x12mm
    Outer size  390x240x250mm 380x220x190mm





    No

    .



    Part



    Part code



    Qty.



    Remarks

    1

    Basic machine

    3CX-12

    1



    2

    Holding jig

    3CJ100101

    1

    for 2.5 mm dia.

    3

    Polishing disk

    3CD100100

    1

    synthetic rubber disk

    4

    Adhesive removal pad

    3CO100101

    1

    with synthetic rubber sheet

    5

    Polishing film (adhesive removal)

    (3CW100100

    )

    10* Sheets

    abrasive paper

    6

    Polishing film (grinding)

    (3CW100200

    )

    1* Sheet

    green label

    7

    Polishing film (polishing)

    (3C W100300

    )

    1* Sheet

    yellow label

    8

    Polishing film (finishing)

    (3C W100400

    )

    1* Sheet

    white label

    9

    Polishing fluid

    (3C A100100)

    1*

    100 ml

    10

    Squeezable dropper bottle

    3C O100200

    2

    50 ml  2

    11

    Power cord

    3C O100420

    1



    12

    Fuse

    3C O100320

    2

    250 V, 1 A

    13

    Ball-end hex wrench

    3C O100500

    1



    14

    Instruction manual

    3C O100220

    1



    15

    Soft brush

    3C O101000

    1



    16

    Setup Stand

    3C O100600

    1



    17

    Grease

    3C O101200

    1



    18

    Maintenance Manual

    3C O100520

    1







    Competitive advantages:





              Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

      All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

      We wish to create better future of optical communication industry jointly with both new and existing customers.
