| Place of Origin: | Hebei |
| Brand Name: | Xintian |
| Certification: | CE ISO9001:2000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | pallet |
| Delivery Time: | 30 days |
| Payment Terms: | TT，L/C |
| Supply Ability: | 20 sets per month |
| High Light: | corrugated carton machine,Automatic Carton Machine |
||
|---|---|---|---|
Description:
Detail information :

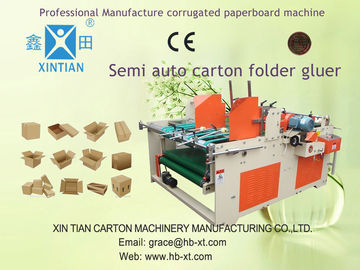

.Semi-auto Gluer(Combined pres-sure Model) is the latest exploit . According to the small order of the user, it has a small volume and cover an area of small.
.Easy operation without having experienced.Suitable for transform small batch products,Applicable range is very wide,Ordinary carton,Heterogeneous shape can be glued.
.Max Mechanical speed is 56m/min,Efficiency is higher 4 time than manual operation; adhesive is strong, Tidy not leak adbesive.
.Light membrane or plastic coated of Sticky mouth section can be polished and removed by Two-headed burnish implement, Improve the glue adhesive,Solve the cartons are easy to opening glue problem in some seasons, in this machine,folding carton is manual,Improve the work efficiency meanwhile correct wrong indentation line.
Main Technical Parameter:
|
Model |
SR-AFG 1500 |
|
Voltage |
3-380VAC |
|
HZ |
50/60 |
|
Power |
3.2Kw |
|
Current |
6.3A |
|
Weight |
1.0T |
|
Overall size |
2200x1900x1300(mm) |
|
Max.Size of box |
1500x1100(mm) |
|
Min.Size of box |
200x260(mm) |
