spray drying equipment
12kw 5kg/h Pharmaceutical Dryers , Centrifugal Spray Drying Machine
E-Heating Power: 12 kw
Tower Height: 1750mm
Water Evaporation: 5kg/h
Revolution of atomizer(rpm): 15500
Diameter of Atomizing disc (mm): 60
Dried Powder Recovery Rate (%): Around≥95
Air input Temp: 160~200℃
Air output Temp: 70~90℃

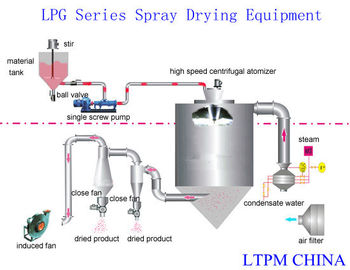

The air is through the filter and heater, the air distributor which enters the dedicator top, the hot air takes the form of spiral and enters the dedicator evenly. The material liquid , from the material liquid trough from the at odds with the community or the leadership atomizer for the dedicator top of pump sending through the filter, make the material liquid gush out into an extremely small calorific drop, material liquid and hot air flow and keep in touch, moisture evaporate rapidly, within extremely short time dry to become finished product, finished product discharge by dry tower bottom and whirlwind separator, the waste gas is discharged by the air blower.
Spray drying is the widest used technology in the liquid shaping technology and in the drying industry. Centrifugal Atomizing (Spray) Drying Equipment is most suitable for producing powder, particles or solid block products from materials of solution, emulsion, soliquoid and pumpable paste states.
|Method of Atomizing||High Speed Centrifugal Atomizer (mechanical drive or stepless frequency speed regulation is available)|
|Revolution of atomizer(rpm)||15500|
|Diameter of Atomizing disc (mm)||60|
|Dried Powder Recovery Rate (%)||Around≥95|
|Length of Covered Area(m)||1.6|
|Width of Covered Area(m)||1.1|
|Height of Tower Body(m)||2.2|
|Hoisting height of Nozzle(m)||1.8|
|Air input Temp||160~200℃|
|Air output Temp||70~90℃|
|Induce Fan Power||3 kw|
|Air Blower Fan Power||2 kw|
|Feeding pump power||1 kw|
|Nebulizer Power||2 kw|
|Vibrator air volume||1CBM/min|
|E-Heating Power||12 kw|
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
