Home ProductsCentrifugal Disc Finishing Machine

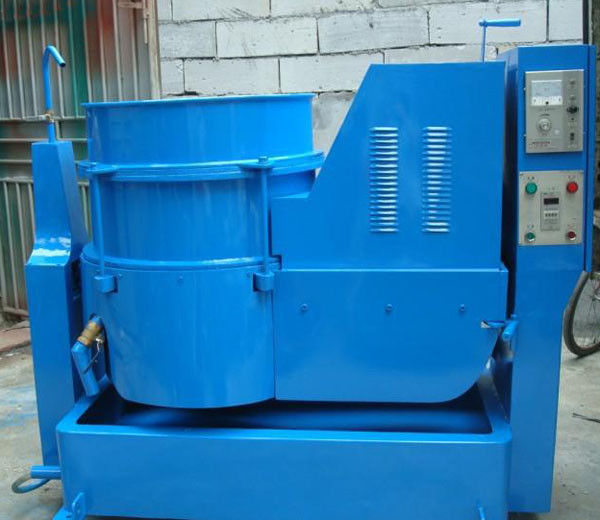

Professional Centrifugal Disc Finishing Machine grinding rankshaft / gold / silver / gems

Professional Centrifugal Disc Finishing Machine grinding rankshaft / gold / silver / gems

Professional Centrifugal Disc Finishing Machine grinding rankshaft / gold / silver / gems

Product Details:

Place of Origin: China
Brand Name: HENGXING
Certification: CE/ISO 9001
Model Number: HXL60

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in Export standard wooden box
Delivery Time: 15 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Product Name: Centrifugal Disc Polishing Machine Dimensions:: 1740×900×1470MM
Rated Input Power: 2.2KW Application: Polishing
Rated Voltage: 380V/50HZ Weight: 350kgs

Centrifugal Disc Polishing Machine can be widely used to grind various metal, plastic and ceramic

work pieces, which have been processed by pressing, cutting, forging and heat treatment, for

deburring, removing oxide and polishing. It is especially a kind of ideal polishing equipment for the complicated and irregular parts and the thin sheet parts that are easy to deform.





No damage to the original shape and size for the work parts.



Long working life and easy operation



Adoption of centrifugal force theory to process the work part with improved efficiency of 15-30 times.



Adjustable running speed of end disc, random check of the work part in the finishing process.



Fixed upper machine wall lined with PU, it enjoys better wear and long life cycle.



The working trough can be manually turn over and discharge the workpiece material, and it is easily to operate.



Very suitable for polishing gold, silver and gems as well as small and thin metal parts(The smallest gap is 0.1mm).



Technical Parameter & Work functional picture

Model HXL60 Professional Centrifugal Disc Finishing Machine grinding rankshaft / gold / silver / gems
Capacity(L) 60

Working trough

dimension(mm)

A(Φ) 590
B 202.5
D 335
E 50
R1 72
R2 50
Dimension(mm) L 1100
W 650
H 1200
Motor(Kw) 2.2
Netweight(kg) 350
Load capacity L 30
Kg 50
Voltage 380V
50HZ





Professional Centrifugal Disc Finishing Machine grinding rankshaft / gold / silver / gems

Professional Centrifugal Disc Finishing Machine grinding rankshaft / gold / silver / gems
