    Product Details:

    Place of Origin: China
    Brand Name: Jiangyin Hallo
    Certification: CE, ISO
    Model Number: 30B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 20 days
    Payment Terms: by T/T (The contract becomes effective after receiving 30% payment, balance against the copy of B/L)
    Supply Ability: 3,500s ets per year
    Contact Now
    Detailed Product Description
    Application: Granules/powder Material: Stainless Steel
    Warranty: 1year Condition: New
    Payment: T/T Or L/C At Sight Terms: FOB, CIF, CFR Etc.

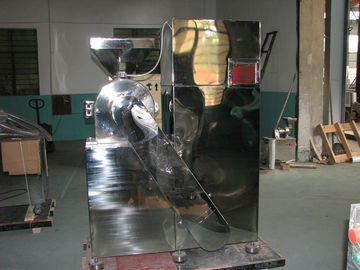

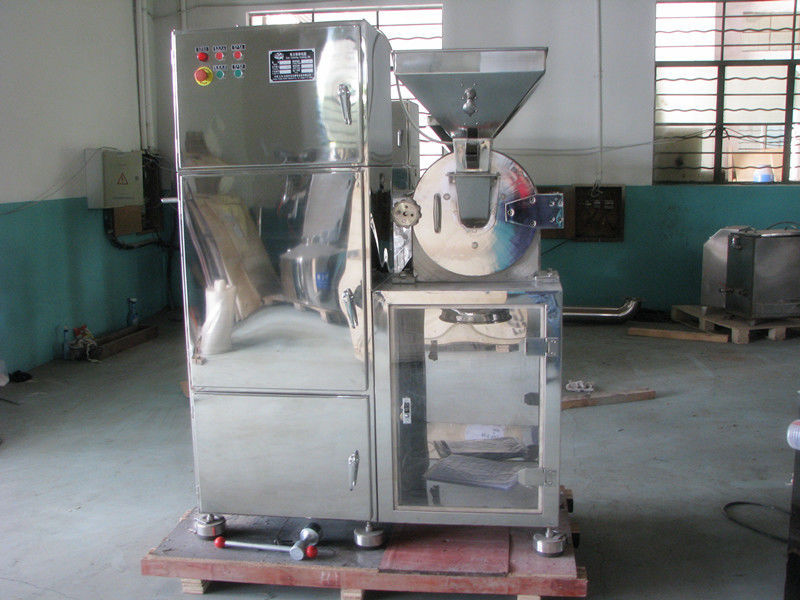

    30B Stainless Steel Universal Grinder Machine With Dust Collector





    Main Application :
    Applied for such trades as pharmaceutical, chemical and foodstuff ect., 30B Stainless Steel Impacting Crushing Machine With Dust Collector is a new generation coarse crushing equipment combining crushing and dust collection as a whole.



    Working Principle:
    By means of relative motion between movable and fixed fluted discs,  material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to"GMP" standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.



    Technical Parameters:

    Model

    30B  IV, V, VI

    Capacity

    100-400 kg/h

    Feeding size

    < 6mm

    Crushing fineness

    20mesh – 120mesh

    Spindle speed

    3800 r/min

    Crushing Motor

    5.5 KW

    Dust Collecting Motor 1.5KW

    dimension

    1250mm*660mm*1750mm

    Weight

    550kg

    (P.S.: IV-mild steel, V-stainless steel, VI-stainless steel with water cooling system)

    Attention: If you are not satisfied, don't be disappointed. The images and parameters are not comprehensive at the webpage. You can tell us your request and we will recommend one to you. And also customizable, our engineer can exclusively design for you.



    Features:

    • Improves the module turntable the internal structure.
    • Using the japan imported linear bearing. ensure equipment's accuracy and service life.
    • Main transmission shafts bearing block can splits, easy for maintain and fix.
    • Groove wheel dividing mechanism, accurate indexing, durable material.
    • All drive cams are using high quality material to make into indentation cam, resist abrasion, steady working, long service life.
    • Configure the pellet mechanism.



    Why Choose Us

    1. We are the manufacturer (Not Dealer):

    All machineries from Jiangyin Hallo are made by ourselves, with lower price, good quality and assured full after service.

    2. Training & Service:

    1. We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.

    2. Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

    3. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

    3. If you are new for this business:

    Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.

    4. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.

    ♥ What is the type and size of raw material?

    ♥ What is your required capacity (kg/h)?



    Our Services:

    After sales service process will start once our clients receive the goods. Hallo had established the after-sales service management system to ensure its service is perfectly provided, Hallo efficiently supervise and manage the whole after-service system.



    The warranty is 1 year. After clients receive the goods, we will provide with parts for the damaged components (excluding the damages caused by wrong operation) for free. We will deliver the necessary parts through TNT, by air or by sea free of charge within one year.



    Hallo is able to provide you with the overall installation of complicated machinery, or customized equipment, or complete production line. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing reports of installation and operation.



    Hallo provides operation manual (English version) to instruct you how to install and maintain. If clients have any technical questions, we will provide phone call instruction, e-mail communication timely.



    Hallo is dedicated to provide our clients with genuine spare parts with the highest quality, appropriate function. The clients submit spare parts request to us, ad list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.



    Our clients can install the machine according to manual boom provided by Hallo, or before delivery, clients can come to our factory during the commissioning period and have training from us about how to operate and maintain the equipment.
