Metal Deck and Floor Deck Roll Forming Machine with 45# Steel Roller

Metal Deck and Floor Deck Roll Forming Machine with 45# Steel Roller

  • Metal Deck and Floor Deck Roll Forming Machine with 45# Steel Roller
Metal Deck and Floor Deck Roll Forming Machine with 45# Steel Roller
Product Details:
Place of Origin: China
Brand Name: Friendship
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: as per client requirements
Packaging Details: plastic film or wooden case
Delivery Time: 30-60days
Payment Terms: T/T or LC
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Highlight:

cold rolling mill

Metal Deck and Floor Deck Roll Forming Machine with 45# Steel Roller





Quick Detail



  • Weight: about 10000Kgs
  • Forming thickness: 0.5mm—1.2mm 195Mpa-550Mpa
  • Transmission: by chain



Production Characteristic and use


Steel tile roll forming machine adopts new station to increase the solidity of the machine; products are widely used in modern architecture roofing, the product increased the housing aesthetics.


Roll forming main machine



  • Coil width: 900-1250 mm
  • Working speed: 10-15m/min
  • Roll station: 26stations
  • Material of roller: 45# steel , polished and coated with chrome
  • Material of main shaft: 45#steel,  diameter roller: Ф80-100mm
  • Main power: 7.5KW
  • Forming thickness: 0.5mm—1.2mm 195Mpa-550Mpa
  • Transmission: by chain
  • Size of machine: 11500x1800x1400(mm)   L x W x H
  • Weight: about 10000Kgs



Cutting



  • Motorized Pre-cutting: It is used when changing the coil of raw material; it can cut the coil rapidly and time-saving. Power: 1.5KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
  • Material of blade: CR12with heat treatment
  • Length measuring: Automatic length measuring



Working flow



Passive /hydraulic decoiler--------guiding&feeding-------rollforming-----length meaurement-----hydraulic cutting-------run out table

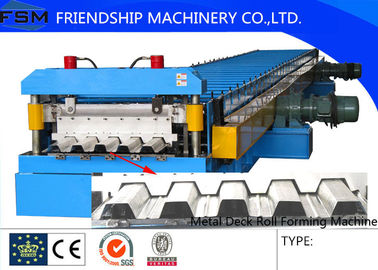

Pictures of machine



Metal Deck and Floor Deck Roll Forming Machine with 45# Steel Roller 0Metal Deck and Floor Deck Roll Forming Machine with 45# Steel Roller 1Metal Deck and Floor Deck Roll Forming Machine with 45# Steel Roller 2
