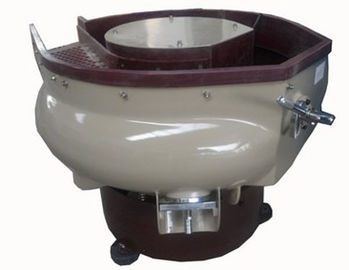

Plastic / stone / wood Automatic Polishing Machine vibratory finisher 120L

Plastic / stone / wood Automatic Polishing Machine vibratory finisher 120L

  • Plastic / stone / wood  Automatic Polishing Machine  vibratory finisher 120L
Plastic / stone / wood  Automatic Polishing Machine  vibratory finisher 120L
Product Details:
Place of Origin: CHINA
Brand Name: HENGXING
Certification: CE ISO
Model Number: HX120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in Export standard wooden box
Delivery Time: 15 days after receicved deposit
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Product Name: Vibratory Polishing Machine Application: POLISHING
Dimensions:: 980X980X900mm Rated Voltage: 380V 50HZ
Rated Input Power: 1.5kw Weight: 400 Kgs
High Light:

electric polishing machine

,

Auto Polishing Machine

Vibratory Polishing Machine is mainly used for processing parts made of metals, non-ferrous metals and

nonmetals, including removing burrs and rust, rounding and polish-processing, especially suitable for polish processing of parts with complicated and

irregular cavities.



After processing, not only there is no damage to the original shape or precision of dimensions

of the processed parts, but also the precision of the roughness of the processed parts can be

raised 1 to 2 grades. This type of polisher is suitable for the surface polishing of large quantity

and batch of medium and large-sized parts.



Plastic / stone / wood  Automatic Polishing Machine  vibratory finisher 120L 0

Technical Specifications



Plastic / stone / wood  Automatic Polishing Machine  vibratory finisher 120L 1



 Plastic / stone / wood  Automatic Polishing Machine  vibratory finisher 120L 2





1. Structure:

Vibratory finishing machine is composed of inertial vibrator, vessel, electrical cabinet and basement.

Inertial vibrator: This is the vibrating source of the machine, it is composed Of vibratory motor,springs

and eccentric blocks.



Vessel: The vessel is welded of annular steel plate. It is lined with high quality wearable



Polyurethane, to weaken the noise and the bump of work pieces on vessel.



Electrical cabinet: Operate the machine by buttons on the control panel.



Basement: It is weld of steel, and it has springs to hold the vessel.

Plastic / stone / wood  Automatic Polishing Machine  vibratory finisher 120L 3



2. Function:



Vibratory finishing machines are suitable for deburring, descaling, edge radiusing, chamfering,

polishing, surface improvement, pre plating finishing all types of components including fully

machined parts in metals & plastics.



3. Working Principle



Vibratory Finishing Machine for Metal Working has a ring chamber to hold abrasives (stones) and

work pieces. When the machine is working, it makes three- high frequency vibration. The grinding

stones and the work pieces are rolling spirally forward and they are grinding each other during the

rolling. This makes the work pieces deburred, chamfered, polished and clean.



To replace the traditional clothwheel polishing, the Vibratory Finishing Machine for Metal Working can

save a lot of spending on manpower, and lower the cost of production. It can also be matched up

with mass production, improve and stabilize the quality of the products.



Plastic / stone / wood  Automatic Polishing Machine  vibratory finisher 120L 4
