Place of Origin: | China |
Brand Name: | HALLO |
Certification: | CE/ISO |
Model Number: | SBH |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD |
Packaging Details: | standard export wooden case |
Delivery Time: | 15-20 working days |
Supply Ability: | 3000 sets per year |
Application: | Powder & Particles | Material: | Stainless Steel |
---|---|---|---|
Mixing Type: | Rotate | ||
Highlight: | stainless steel mixer |

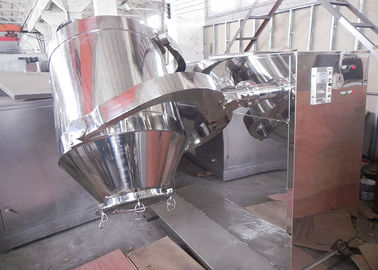

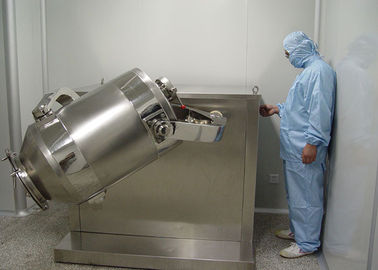

Energy saving 304 / 316L Vertical Mixer 3D Movement Swing Mixer
Main Application :
Vertical Stainless Steel 304/316L SBH Series 3D Movement Swing Mixer is applicable for mixing of powdery and granulate material in pharmaceutical, chemical foodstuff, ligh industry, electronic, mining and metallurgy, national defense industry and scientific research institutes.
Working principle :
This machine is composed of base, governor motor shaft, rotary connecting rod and barrel etc., material barrel is driven by the positive shaft to make complex movement including horizontal move, rotation and roiling etc, which makes the material moved to 3 directions along the barrel, therefore, highly uniform mixing of various material is realized. This machine is a kind of full closed high effcient energy saving mixer without germ and dust. When he material is being mixed, no centrifugal force effect and situation of gravity segregation and laminar accumulation are occurred. In addition, it has larger loading capacity, short mixing time and high efficiency.
Technical Parameters :
Model | Barrel volume | Max loading volume | Max loading weigh | Mixing time | Spindle speed | Motor power | Overall dimension | Weight |
---|---|---|---|---|---|---|---|---|
SWH-10 | 10L | 7L | 7kg | 0-99min | 0-22r/min | 0.18kw | 640*620*55mm | 150kg |
SWH-25 | 25L | 18L | 18kg | 0-99min | 0-15r/min | 0.55kw | 900*900*75mm | 150kg |
SWH-50 | 50L | 40L | 40kg | 0-99min | 0-15r/min | 0.75kw | 970*950*120mm | 300kg |
SWH-100 | 100L | 75L | 75kg | 0-99min | 0-15r/min | 1.5kw | 1200*1600*1500mm | 500kg |
SWH-200 | 200L | 160L | 160kg | 0-99min | 0-15r/min | 2.2kw | 1400*1800*1600mm | 800kg |
SWH-400 | 400L | 320L | 320kg | 0-99min | 0-12r/min | 4kw | 1700*2100*1850mm | 1200kg |
SWH-600 | 600L | 480L | 480kg | 0-99min | 0-11r/min | 5.5kw | 2100*2400*2250mm | 1500kg |
SWH-800 | 800L | 640L | 640kg | 0-99min | 0-10r/min | 7.5kw | 2200*2500*2300mm | 2000kg |
SWH-1000 | 1000L | 800L | 800kg | 0-99min | 0-10r/min | 7.5kw | 2280*2600*2500mm | 2500kg |
SWH-1200 | 1200L | 950L | 950kg | 0-99min | 0-10r/min | 11kw | 2400*2800*2550mm | 2800kg |
SWH-1500 | 1500L | 1200L | 1200kg | 0-99min | 0-10r/min | 15kw | 2500*3100*2600mm | 3000kg |
SWH-2000 | 2000L | 1600L | 1600kg | 0-99min | 0-9r/min | 18.5kw | 2800*3600*3200mm | 3800kg |
Features:
1. As the mixing vat is able to make multidirectional operation, there are more mixing points that
bring favorable mixing efficiency, its mixing homogeneity is much higher than that of general
mixers, drug homogeneity error is lower than that of general mixer. Meanwhile, the maximum
charging volume is one time higher than that of general mixer, the maximum charging volume of
general mixer is 40% of full barrel volume, and the maximum charging rate can be up to 90%.
2. It is unique in design of mixing vat, inner wall of the mixing vat is fine polished, no dead angle,
no pollution to the materials, and the materials will be discharged automatically under gravity
function without any residual, with advantages of pollution-free, residual-free, and it is easy to
discharge and clean.
3. The materials are mixed under the airtight space; it would not pollute the environment.
time and high efficiency.
Why Choose Us
1. We are the manufacturer (Not Dealer):
All machineries from Jiangyin Hallo are made by ourselves, with lower price, good quality and assured full after service.
2. Training & Service:
1. We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
2. Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business:
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
♥ What is the type and size of raw material?
♥ What is your required capacity per batch?
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
