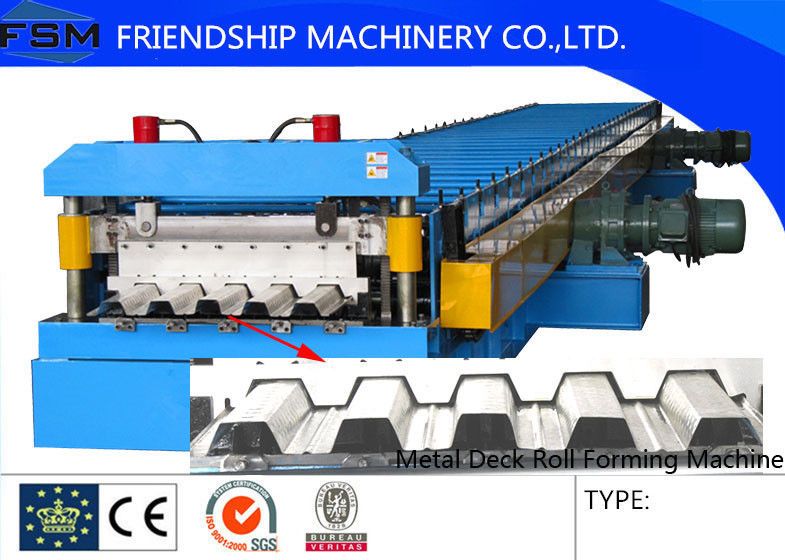

Metal Deck and Floor Deck Roll Forming Machine with 45# Steel Roller

Quick Detail

• Weight: about 10000Kgs
• Forming thickness: 0.5mm—1.2mm 195Mpa-550Mpa
• Transmission: by chain

Production Characteristic and use

Steel tile roll forming machine adopts new station to increase the solidity of the machine; products are widely used in modern architecture roofing, the product increased the housing aesthetics.


Roll forming main machine

• Coil width: 900-1250 mm
• Working speed: 10-15m/min
• Roll station: 26stations
• Material of roller: 45# steel , polished and coated with chrome
• Material of main shaft: 45#steel,  diameter roller: Ф80-100mm
• Main power: 7.5KW
• Forming thickness: 0.5mm—1.2mm 195Mpa-550Mpa
• Transmission: by chain
• Size of machine: 11500x1800x1400(mm)   L x W x H
• Weight: about 10000Kgs

Cutting

• Motorized Pre-cutting: It is used when changing the coil of raw material; it can cut the coil rapidly and time-saving. Power: 1.5KW
• Cutting after forming: Cut the sheet after roll forming to required length
• Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
• Material of blade: CR12with heat treatment
• Length measuring: Automatic length measuring

Working flow

Passive /hydraulic decoiler--------guiding&feeding-------rollforming-----length meaurement-----hydraulic cutting-------run out table

Pictures of machine
