| Place of Origin: | CHINA |
| Brand Name: | HENGXING |
| Certification: | ISO |
| Model Number: | HX300 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Export standard wooden box |
| Delivery Time: | 15 days after receicved deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 sets per month |
| Product Name: | Automatic Vibratory Finishing System | Application: | POLISING |
|---|---|---|---|
| Process Channel:: | 370mm | Rated Voltage: | 380V 50HZ |
| Rated Input Power: | 5.5kw | Capacity: | 300 L |
| High Light: | electric polishing machine,Auto Polishing Machine |
||

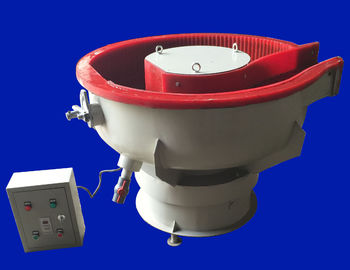

Automatic Polishing Machine is mainly used for processing parts made of metals, non-ferrous metals and nonmetals, including removing burrs and rust, rounding and polish-processing, especially suitable for polish processing of parts with complicated and
irregular cavities.
After processing, not only there is no damage to the original shape or precision of dimensions
of the processed parts, but also the precision of the roughness of the processed parts can be
raised 1 to 2 grades. This type of polisher is suitable for the surface polishing of large quantity
and batch of medium and large-sized parts.
Technical Specifications
| Model | HX120 | HX200 | HX300 | HX450 | HX600 | HX900 | HX1200 | |
| Capacity (L) | 120 | 200 | 300 | 450 | 600 | 900 | 1200 | |
| Size (mm) | A | 920 | 860 | 940 | 1180 | 1260 | 1300 | 1500 |
| B | 980 | 1130 | 1280 | 1440 | 1590 | 1950 | 1980 | |
| C | 350 | 560 | 480 | 560 | 580 | 930 | 950 | |
| D | 290 | 270 | 370 | 420 | 480 | 480 | 480 | |
| Motor Power (kw) | 1.5 / 2.2 | 2.2 | 3.7 / 5'0 | 3.7 /5.0 | 5.5 /7.5 | 7.5 / 11 | 11/15 | |
| Weight (kg) | 400 | 550 | 700 | 1000 | 1200 | 1500 | 2000 |
|
