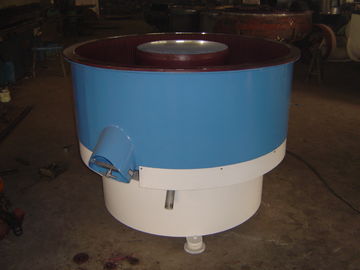

Super metal surface Grinding Machine , High Speed vibro polishing machine

Super metal surface Grinding Machine , High Speed vibro polishing machine

  • Super metal surface Grinding Machine , High Speed vibro polishing machine
Super metal surface Grinding Machine , High Speed vibro polishing machine
Product Details:
Place of Origin: CHINA
Brand Name: HENGXING
Certification: CE ISO
Model Number: HXP 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in Export standard wooden box
Delivery Time: 15 days after receicved deposit
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Product Name: Vibration Finishing Machine Application: POLISHING
Process Bowl Width: 220mm Rated Voltage: 380V 50HZ
Rated Input Power: 3kw Weight: 420 Kgs
High Light:

vibration polishing machine

,

Vibratory Polishing equipment


Vibration finishing Machine is particularly suitable for chamfering, deburring and improving surface roughness of various metal and non-metal parts (such as bearing rollers, ferrules, retaining frames, automobile parts and gears), improves the whole appearance quality of the parts,
and is the preferred and requisite equipment of industries such as aircraft manufacturing, automobile, bearing, textile, and craftwork, etc.
1. Adoption of vibratory motor to produce vibrating force, it makes workparts and medias move in one direction and mass finished
2. Aplicable to process small and medium size workparts in large amount load, with good finish effect and sand working efficiency is improved to 6-10 times compared with tradional finishing methods.
3. No damage to the original shape and size of the workpart.
4. The processing vessel interior surface is lined with PU (polyurethane), avoiding direct damage to the work -parts and machine metal, and the working life for the machine is extended.
5. Random checking the workparts in the finishing process, easy operation. Option to choose the independent electrical box with converter.

Technical Specifications



ModelHXP 30HXP 60HXP 100HXP 200HXP 300HXP 400HXP 600HXP 900
Volum(L)3063100220250400660920
Max dimension(mm)-A670830102012001310141018201930
Motor installation tube(mm)-C136114470625620633910610
Process bowl width(mm)-D184280216220270320370560
Tunnel depth(mm)-E200245330385390450490510
Height(mm)-H800910860915900104011401350
Motor(kw)0.50.75/1.11.5/2.233.7/5.055.5/7.59
Weight(kg)8511026042060085015002000




1. Structure:
Vibratory finishing machine is composed of inertial vibrator, vessel, electrical cabinet and basement.
Inertial vibrator: This is the vibrating source of the machine, it is composed Of vibratory motor,springs
and eccentric blocks.

Vessel: The vessel is welded of annular steel plate. It is lined with high quality wearable

Polyurethane, to weaken the noise and the bump of work pieces on vessel.

Electrical cabinet: Operate the machine by buttons on the control panel.

Basement: It is weld of steel, and it has springs to hold the vessel.
