380V / 50HZ Vibratory Finishing Machine Polishing Metals / Plastic , CE / ISO

380V / 50HZ Vibratory Finishing Machine Polishing Metals / Plastic , CE / ISO

  • 380V / 50HZ Vibratory Finishing Machine Polishing Metals / Plastic , CE / ISO
380V / 50HZ Vibratory Finishing Machine Polishing Metals / Plastic , CE / ISO
Product Details:
Place of Origin: China
Brand Name: HENGXING
Certification: CE/ISO 9001
Model Number: HXZP -B400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in Export standard wooden box
Delivery Time: 15 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 set per month
Contact Now
Detailed Product Description
Product Name: Vibratory Finishing Machine Dimensions:: 1330x1330x1000mm
Rated Input Power: 3.7KW Application: Polishing
Rated Voltage: 380V/50HZ Weight: 760kgs

380V 50HZ Vibratory Finishing Equipment Polishing Metals / Plastic CE





1. Adoption of vibratory locus theory of 3-dimensional curve, it makes work part and medias interactively mass finished.



2. Applicable to process small and medium size work part in large amount load, and working efficiency is improved to 6-10 times compared with traditional finishing methods.



3. No damage to the original shape and size of work part.



4. Random checking the work part in the finishing process.

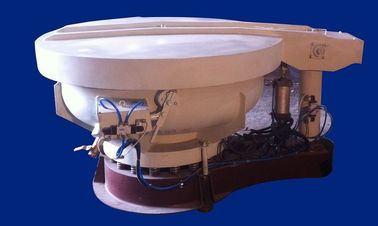

380V / 50HZ Vibratory Finishing Machine Polishing Metals / Plastic , CE / ISO 0



Technical Specifications



Type

capacity

motor

electricity

motor speed

process bowl width

lining thickness

size(LXWXH)

weight

(L)

(KW)

(V/HZ)

(r/min)

(mm)

(mm)

(mm)

(kg)

HXZP -B150

150

2.2

380/50

1440

220

6-20

1060X1030X850

350

HXZP -B200

200

3.0

380/50

1450

260

8-22

1200X1180X920

500

HXZP -B300

300

3.7

380/50

1450

285

8-22

1330X1330X1000

760

HXZP -B400

400

3.7

380/50

1450

330

8-22

1450X1440X1030

900

HXZP -B600

600

5.5

380/50

1450

380

10-25

1880X1850X1340

1400

HXZP -B900

900

11.0

380/50

1450

455

15-30

2160X2160X1400

2000







380V / 50HZ Vibratory Finishing Machine Polishing Metals / Plastic , CE / ISO 1



1. Structure:



Vibratory finishing machine is composed of inertial vibrator, vessel, electrical cabinet and basement.

Inertial vibrator: This is the vibrating source of the machine, it is composed Of vibratory motor, springs and eccentric blocks.



Vessel: The vessel is welded of annular steel plate. It is lined with high quality wearable Polyurethane, to weaken the noise and the bump of work pieces on vessel.



Electrical cabinet: Operate the machine by buttons on the control panel.



Basement: It is weld of steel, and it has springs to hold the vessel.



380V / 50HZ Vibratory Finishing Machine Polishing Metals / Plastic , CE / ISO 2



2. Function:



Vibratory finishing machines are suitable for deburring, descaling, edge radiusing, chamfering, polishing, surface improvement, pre plating finishing all types of components including fully machined parts in metals & plastics



3. Working Principle



Vibratory Finishing Machine for Metal Working has a ring chamber to hold abrasives (stones) and work pieces. When the machine is working, it makes three-D high frequency vibration. The grinding stones and the work pieces are rolling spirally forward and they are grinding each other during the rolling.



This makes the work pieces de-burred, chamfered, polished and clean. To replace the traditional cloth-wheel polishing, the Vibratory Finishing Machine for Metal Working can save a lot of spending on manpower, and lower the cost of production. It can also be matched up with mass production, improve and stabilize the quality of the products.



380V / 50HZ Vibratory Finishing Machine Polishing Metals / Plastic , CE / ISO 3
