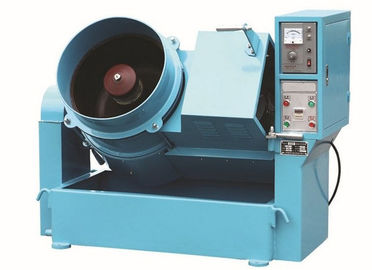

Metal / plastic / stone polishing machine , 120L High Speed rock polishing machine

Metal / plastic / stone polishing machine , 120L High Speed rock polishing machine

  • Metal / plastic / stone polishing machine , 120L High Speed rock polishing machine
Metal / plastic / stone polishing machine , 120L High Speed rock polishing machine
Product Details:
Place of Origin: China
Brand Name: HENGXING
Certification: CE/ISO 9001
Model Number: HXCP-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in Export standard wooden box
Delivery Time: 15 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Product Name: Centrifugal Disc Polishing Machine Dimensions:: 1740×900×1470MM
Rated Input Power: 4.0KW Application: Polishing
Rated Voltage: 380V/50HZ Weight: 600kgs
High Light:

Professional Polishing Machine

,

surface polishing machine





Centrifugal Disc Polishing Machine can be widely used to grind various metal, plastic and ceramic

work pieces, which have been processed by pressing, cutting, forging and heat treatment, for

deburring, removing oxide and polishing. It is especially a kind of ideal polishing equipment for the complicated and irregular parts and the thin sheet parts that are easy to deform.





No damage to the original shape and size for the work parts.



Long working life and easy operation



Adoption of centrifugal force theory to process the work part with improved efficiency of 15-30 times.



Adjustable running speed of end disc, random check of the work part in the finishing process.



Fixed upper machine wall lined with PU, it enjoys better wear and long life cycle.





Technical Parameter



Model

Capacity

Size

Motor

Weight

Speed (RPM)

Chamber dimension (mm)

PU thickness (mm)

(L)

L×W×H

(kW)

(kg)

HXCP-60

60

1000×660×1120

1.5

300

50-180

460

22

HXCP-120

120

1740×900×1470

4

600

50-180

640

26

HXCP-230

230

1620×1008×1135

7.5

1100

0-140

800

30



Metal / plastic / stone polishing machine , 120L High Speed rock polishing machine 0

Metal / plastic / stone polishing machine , 120L High Speed rock polishing machine 1
