| Place of Origin: | WUXI CHINA |
| Brand Name: | ZOOY |
| Certification: | CE |
| Model Number: | ZO-SM |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | USD30000$-50000$ |
| Packaging Details: | Standard packing according to the actual situation |
| Delivery Time: | 60days after get 30% down payment |
| Payment Terms: | 40% T/T in advance, 60% T/T before shipment |
| Supply Ability: | 200Sets Per Year |
| Cutting Type: | Hydraulic Cutting | Forming Speed: | 12-15m/min |
|---|---|---|---|
| Transmission: | Chains Or Gear Box | Type: | Metal Floor Deck Rolling Machine |
| Hydraulic Station: | 7.5KW | Material Thickness: | 0.8mm-1.6mm |
| High Light: | Cold Roll Forming Machine,floor deck roll forming machine |
||
1200 Feeding Roof Panel Roll Forming Machine Gear Box Transmission
Metal Deck Mchine Production Flow
1.Decoiler---2.Feeding and Guiding---3.cutting---4.Main Roll Forming---5.Runout table To Collect The Production
Composition of machine
1.Manual /Hydraulic decoiler
2.Feeding and Guiding mill
3.Main roll forming machine
4.Hydraulic cutting mill
5.Post cutting device
6.safety cover device
7.Hydraulic station
8.Panasonic PLC control Cabinet
9.Runout table
Competitive Advantage:
| 1. | Machines are customized, we can design every component of the machine according to the customers' requirement. |
| 2. |
We always choose the best material for every component of the machine. |
| 3. |
CE, ISO certification is both available for the machines |
| 4. | Machine is designed adopting the advanced the European technology ,craft |
| 5. | Engineers have more than 15 years experience in designing the roll forming machines |
| 6. | Engineers are available to the customers’ factory to test and fix the machine and teach the workers to use and operate the machines |
Metal Deck Machine Application And Metal Deck Profile Drawings
Floor Deck Forming Machine is a very simple, common used equipement in producing the metal floor deck, m the products can be used in many different fields of the roof bulidng as the suppirt of the roof to protect and help the roofing .
Machine General Description
The whole production line Corrugated Floor Deck Forming Machine includes the: decoiler , feeding and levelling mill,main roll forming machine, hydraulic device, the production line is totally controlled by Panasonic PLC, length, sizes, width are adjustable, rollers are polished chrome with heat treatment , every rank of rollers are connected with chains or gear box which are provided the energy and power by gear box , the hydraulic cutting is very fast , more tolerance, profiles are very smooth and no burring remaining.machines can be used at least more than 10 years, CE,ISO certification is avaiable for all Floor Deck Forming Machines
| 1. Decoiler Type: Optional manual /hydraulic/ automatic |
| 2. Decoiler Inner Diameter : 510mm-610mm |
| 3. Decoiler Outer Diameter: Max 1300mm |
| 4. Material Thickness : 0.8 mm-1.6mm |
| 5. Working speed : 12-15m/min |
| 6. Number of Roller Stations: about 17 stations |
| 7. Driven motion : motor |
| 8. Roller material : GCR15 steel with heat treatment |
| 9. Shaft diameter : 80mm |
| 10. Shaft material : High grade 45# steel |
| 11. Main Motor Power : 20kw |
| 12. Cutting power : 3kw |
| 13. Hydraulic pressure : 20Mpa |
| 14. Cutting length tolerance : +/-1.5mm(per 3m) |
| 15. Cutting dies material : GCr12 with quenched treatmentHR58-62 |
| 16. Power of oil pump : 3kw |
| 17. Oil of Hydraulic station : 40# carbon |
| 18.Control system : PLC frequency control system with touch screen |
| 19. PLC brand : Japan panasonic |
| 20. Encoder brand : Ombrand |
| 21. Coil material Yield strength :G250Mpa |
| 22. Transducer : Panasonic |
| 23. Raw material : GI. Carbon steel |
| 24. Transmission : Gear boxes |

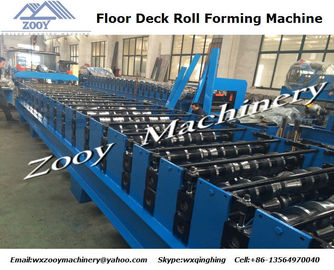

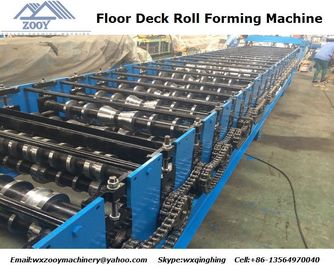

Metal Floor Deck Roll Forming Machine Pictures
We also produce other Roll forming machines :
Other Parts of Metal Floor Deck Roll Forming Machine
Payment Terms
| Procuments Aspects | Detailed Rules |
|---|---|
| Payment Terms |
The payment shall be made by L/C or T/T(30% down payment and the balance for 70% shall be paid before container loading at the seller`s factory when the buyer confirms the quality is up to the contracted requirements |
| Delivery Time |
30-65 working days after the receipt of the payment |
|
Warranty |
1year warranty from date of shipment. |
| Packing |
Suitable for sea transportation.Usually one High precision Grape stake roller formed facility loads in one container.Depends on the machine's size and weight |
